Electrics

Switch covers OEM Style for Land Rover Defender and Discovery Extend your vehicle console with additional switches in OEM style. Please select the desired variant. Without switch

Built-in socket outlet 12 V, loadable up to 15 A, with cover cap The socket can either be installed directly (dashboard, cubby box, cabinet, etc.) or can be mounted in one of the surface-mounted housings (single, double, triple). Ensure that there is sufficient fuse protection! The unit can also be used in the standardised 29 mm installation opening of the cigarette lighter in many vehicles. The delivery includes the lock nut required for mounting as well as a cover cap.

Protective cover for MagCode PowerPort suitable for Power System and PowerSystem Pro, 12 and 24 V. Protects the PowerPort socket when not in use, very easy to fit.

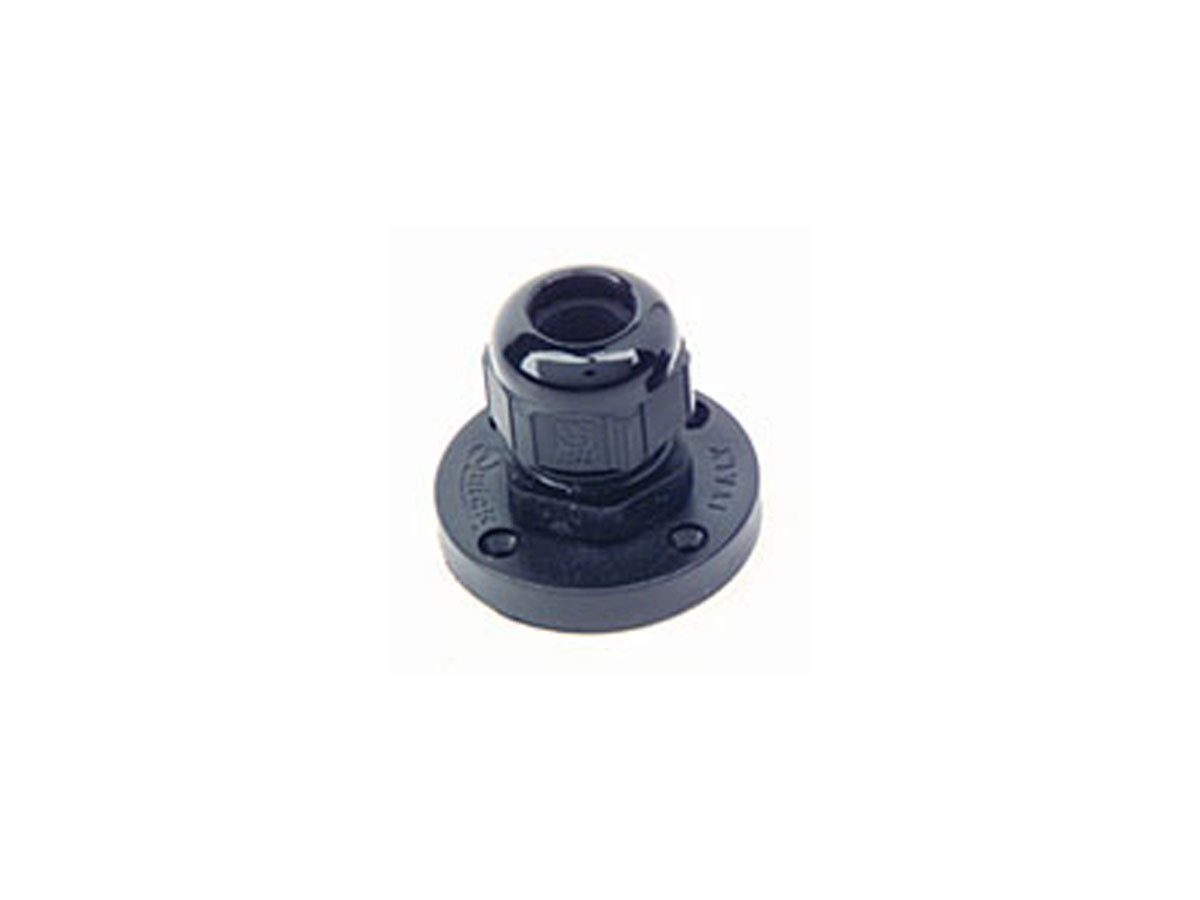

This cable grommet guarantees complete sealing due to an o-ring. Ideal for installing cables (Ø 6-11 mm), CB aerials and spotlights. The grommet is made of synthetic, corrosion and salt water resistant material. 49 mm flange diametre. Comes with mounting screws.

Blue Sea BS 5258 AMI/MIDI fuse 150A Is ideal for electronic equipment where superfast fuses are required. Main features: Superfast fuses ideal for electronic equipment. Classic circuit breakers for automotive and truck fuse protection Tin-plated connectors for corrosion resistance Visible indication of a blown fuse Packaging unit of 2 pieces Technical data: Maximum current consumption: 150A Maximum voltage: 32V DC Breaking capacity: 5000A @ 16V DC 2000A @ 32V DC Battery connection bolt with torque limitation: 4.52 Nm Minimum temperature: -40 °C maximum temperature: 125 °C Material: tin-plated copper CDA 110/UNS11000 MIDI strip fuse 100 A, 2 pieces, e.g. for fuse holder NABS7720, but also for other holders with MIDI sockets. With 125 A, the fuses are ideally suited for protecting our TEXU400 central electrics, which may be loaded with max. 400 A. Suitable for applications up to max. 32 V. Scope of delivery: 2 pieces

Blue Sea BS 5256 AMI/MIDI fuse 100A Is ideal for electronic equipment where superfast fuses are required. Main features: Superfast fuses ideal for electronic equipment. Classic miniature circuit breakers for automotive and truck fuse protection Tin-plated connectors for corrosion resistance Visible indication of a blown fuse Packaging unit of 2 pieces Technical data: Maximum current consumption: 100A Maximum voltage: 32V DC Breaking capacity: 5000A @ 16V DC 2000A @ 32V DC Battery connection bolt with torque limitation: 4.52 Nm Minimum temperature: -40 °C maximum temperature: 125 °C Material: tin-plated copper CDA 110/UNS11000 MIDI strip fuse 100 A, 2 pieces, e.g. for fuse holder NABS7720, but also for other holders with MIDI sockets. With 125 A, the fuses are ideally suited for protecting our TEXU400 central electrics, which may be loaded with max. 400 A. Suitable for applications up to max. 32 V. Scope of delivery: 2 pieces

MIDI strip fuse 125 A - suitable for many MIDI fuse holders These MIDI strip fuses with a rated current of 125 amps are ideal for use in 12V and 24V vehicle electrical systems - for example in cars or motorhomes. Among other things, they fit perfectly in our NABS7720 fuse holder, but are also compatible with many other holders that have a standardised MIDI socket.With a load capacity of 125 A, these fuses offer optimum protection for power distributors that can be loaded with up to 100 A. They ensure reliable overcurrent protection and help to prevent expensive damage to electronics and cables.Suitable for applications with a maximum operating voltage of 32 volts.Scope of delivery:2 MIDI strip fuses, 125 A each

Electrical protection - Corriaion protection agent High-quality electrical protection to prevent starting problems in wet conditions. Due to its extremely good creeping ability, the spray infiltrates and displaces water and moisture. Engine parts are protected against rust formation and contamination. The unique corrosion protection agent infiltrates moisture and wetness through a physical/chemical process and forms a permanent, effective protective film. Wherever the clash of water or moisture and electronic components is a PROBLEM and another solution, such as a protective lacquer, cannot be used for technical reasons, Presto offers a unique and high-quality solution: ✓ liquid insulating agent✓ fast effect✓ avoids starting problems✓ displaces moisture✓ anti-corrosive effect We do not deliver this item to Switzerland.

Copper cable H07RN-F, extended version, 35mm², 1 metre High-quality copper cable, 35 mm², e.g. for jump-start or winch cable, price per metre. Order this article as often as you need 1 m length.Manufacturer information:H07RN-F, extended version are heavy rubber hose cables for connecting heavy duty equipment and for connecting commercial and agricultural machinery where the cables are subject to medium mechanical stresses. (e.g. machine tools, hot plates, hand lamps, power tools) Suitable for use in dry, damp or wet rooms as well as outdoors in accordance with the intended use as per DIN EN 50565-2 (VDE 0298-565-2). Fixed installation e.g. on plaster in temporary buildings and residential barracks is permissible. Continuous, operational movements, forced guidance or use on cable drums or rollers or under tensile load with a conductor cross-section of more than 15 N/mm² are not permitted. Arrangements of single-core rubber-sheathed cables H07RN-F can be used for short-circuit and earth-fault protected installations according to VDE 0100-520 (VDE 0100-520).Extended fields of application due to additional properties:    Halogen-free materials with low smoke density in case of fire: Improved suitability for enclosed places with increased concentration of persons and material assets.    Improved cold flexibility: Minimum conductor temperature of -40 °C in moving applications    Wider temperature range: Maximum conductor temperature of +90°C instead of +60°C    Standardised ozone resistance and wider temperature range: generally higher resistance outdoors    Uninterrupted long-term immersion (AD8) up to 100 m water depth (no drinking water, minimum water temperature of +5°C, no chlorine water, only largely stagnant water without current)    Drip-loop torsion resistance: As a torsion cable in the drip loop ("cable loop") of wind turbines between nacelle and tower.

ON/OFF switch with pilot light in round recessed housing ON/OFF switch with red control light in round installation housing.The switch can also be easily exchanged for our rocker switches with location lighting or other rocker switches in this format.Load capacity: 12V 10A / 24V 6AHole diameter bore: 29mm

Alan PL259/6 plug, for RG58 coaxial cable PL259/6 plug, double pack, for assembling RG58 antenna cables.Required for the Alan ML130 and Alan ML145 magnetic antenna.

Carling tool for switch assembly Original tool for disassembling the Carling Contura switches.If you want to change the cover / touch surface, you need one tool.If you want to remove the switch from the frame, you need this tool twice - see picture.

This relay is universally used in the automotive field Relay type:                        electromagnetic Contact configuration:       SPST-NO Nominal coil voltage:         12 V DC Contact current:                 max. 70 A Contact rating DC @R:      60 A / 14 V DC Relay type:                         KFZ Coil voltage:                       min. 7.8 V DC Coil voltage:                       max. 18 V DC Coil resistance:                  80 Ω Operating temperature:     -40...85 °C Mounting:                           for front panels Coil power consumption:   1.8 W Relay series:                      FRC3 Contact resistance:            30 mΩ Outputs:                             connector 6.3x0.8 mm, connector 9.5x1.2 mm Mechanical durability:        10,000,000 cycles Weight:                              47 g Coil current:                       150 mA Response time:                 10 ms Release time:                    10 ms Electrical life:                     100,000 cycles Switching voltage:              max. 75V DC External dimensions:         29x29x26.5mm Dimensions see:

Panel for sockets with round housing and quick connector Mounting panel for sockets with round housing such as our 12V socket or our USB sockets and quick connectors (e.g. our QC-S plug, Anderson plug or Anderson style plug) Quick connectors are available here: QC-S electrical plug small 12/24V 2-pinQCGRY-S quick connector (Anderson style) Sockets with round housing are available here: NA12V Built-in socket 12VWSMBBS Switch with indicator lightNADOUSB-C Double USB C socket outlet incl. spacer

5-pole electric cable 5-pole electrical cable, 2.5mm², sturdy rubber sheathing, with protective conductor, flexible, black, price per metre. High-quality - manufacturer: LAPP Kabel Please order multiple items of this article for the desired lengh in metres - e.g. if you require five metres altogether you order this item five times.

18350 Li-Ion 900 mAh battery This is Armytek’s official battery for the Tiara A1 Pro, a Li-Ion rechargeable with 900 mAh. As always with Armytek, the battery is designed to meet the highest requirements, especially in the flashlight’s turbo modes. It can be charged up to 500 times and is protected by a thermal cut-off vent. We recommend using the Uni C4 charger with your rechargeable batteries. - Can be recharged over 500 times, equivalent to 500 single-use CR123 batteries- «+» flat contact- Safety ventilation slots for protection against overheating- Battery output voltage: 3.7 V- Capacity: 900 mAh Please note the legal information on batteries HERE. For certain types of batteries, we are legally obliged to charge a deposit.

Quick connector 2-pole 12/24V Quick connector (Anderson style) for 12/24V, 2-poleThe connector is used to lay the battery connections out of the battery box in order to be able to connect power consumers quickly, conveniently and without the risk of a short circuit.With 12V up to max 50A loadable / with 24V up to max. 25Amax. 5mm cable diameterLength: 5 cm ; Width: 3,5 cm ; Height: 1,5 cmThe quick connector can also be integrated into our mounting panel EB3QC.

Nakatanenga surface-mounted housing Surface-mounted housing, optionally for 12V socket, USB socket or voltmeter, optionally for one, two or three units.Installation panels and devices are for illustration purposes only and are not included in the scope of delivery.

Installation panel - easy installation for 12V sockets, USB chargers or voltmeters This practical installation panel enables the neat and tidy integration of built-in devices such as 12V sockets, USB charging sockets or voltage displays (voltmeters) in vehicles, boats, motorhomes or other applications. The cover ensures a tidy appearance and makes installation considerably easier.Depending on your requirements, the cover is available in different versions - suitable for one, two or three devices. This means you can put together your own customised configuration with complete flexibility.Installation is quick and easy - ideal for retrofitting or conversions.Note: The devices and consoles shown are for illustrative purposes only and are not included in the scope of delivery.

Adapter for Connecting Two Alan PL259/6 Connectors This adapter allows easy and secure connection of two Alan PL259/6 connectors. Ideal for use in radio communications, antenna installations, or for extending coaxial cables.Made from durable materials to ensure reliable signal transmission and long-lasting performance. Features: Compatible with Alan PL259/6 connectors Compact design Easy to use Perfect for radio and antenna applications

Under-cabinet/on-cabinet holder simple, optionally for 12V socket, USB socket or voltmeter
